R134a hot sale auto air conditioning hose with good quality

Flexible Hose SAE J2064 Air Conditioning Hose Tyep C A/C hose has two structures:Braided and Spiral. Type C braided A/C hose has 5 layers and Type C spiral A/C hose has 7 layers. Our company has advanced equipment of productionand inspection, advanced technology, well-built system of management and quality assurance. Now our products are widely welcomed by many foreign countries worldwide, such as USA, Russia, Korea, Indonesia and etc.

CONTACT NOW down load to pdf

Details

Tags

Read More About ac manifold gauge set r134a Product Application

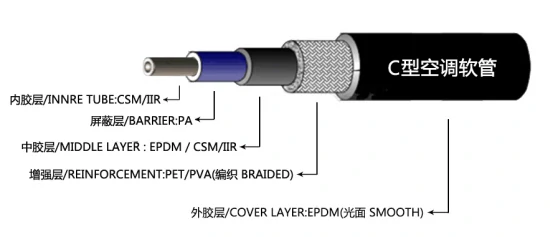

Tyep C A/C hose has two structures:Braided and Spiral. Type C braided A/C hose has 5 layers and Type C spiral A/C hose has 7 layers. The air conditioning hose is used in the air conditioning system of cars, trucks, and other vehicles with the performance of low permeability, pulse resistance, aging resistance, Ozone resistance, and shock resistance.

Our products are popular in the auto air conditioning system market, at the same time, we enjoyed a good reputation from the foreign customers.This hoses are extensively used to CAR AUTO Refrigeration part.

Scope of application: the air conditioning hose is widely used in the air conditioning system of various trucks, cars and engineering vehicles.

Read More About r134a recharge hose with gauge Packaging & Shipping

Packaing details : In 50m/roll or 100m/roll with paper or with plastic woven film ,We can also offer custimized packing service.

Shipping : Within 15days after receiving the deposit.

Application Temperature: -40°C ~ +135°C

Standard: SAE J2064

Certificate： ISO/TS 16949:2009

Refrigerant: R12, R134a, R404a

Read More About r134a refrigerant charging hose

Read More About r134a recharge hose with gauge Product Features

R134a refrigerant resistance, good pulse-resistance, Aging resistance, Preservative, Ozone resistance, Low permeability, Shock resistance.

Read More About r134a refrigerant hose Product Parameters

Type C A/C Hose (Thin Wall-A10)

Specification		Inner Diameter	Outer Diameter	Working Pressure	Burst Pressure
Standard Inner Diameter（mm)	Inch	mm	mm	Mpa	Mpa
#6	5/16''	8 ±0.4	15.2±0.5	3.5	23
#8	13/32''	11.5±0.4	18.4±0.5	3.5	22
#10	1/2''	13±0.4	21±0.5	3.5	20
#12	5/8''	15.5±0.4	23±0.5	3.5	21

Type C A/C Hose (Thick Wall-A20)

Specification		Inner Diameter	Outer Diameter	Working Pressure	Burst Pressure
Standard Inner Diameter（mm)	Inch	mm	mm	Mpa	Mpa
#6	5/16''	8.2 ±0.4	19±0.5	3.5	21
#8	13/32''	10.5±0.4	23±0.5	3.5	21
#10	1/2''	13±0.4	25.4±0.5	3.5	22
#12	5/8''	16±0.4	28.6±0.5	3.5	18

QRT-JL Air Conditioning Hose (R134a)

Specification		Inner Diameter	Outer Diameter	Working Pressure	Burst Pressure
Standard inner Diameter（mm)	Inch	mm	mm	Mpa	Mpa
#6	5/16''	8.2 ±0.4	14.7±0.5	3.5	21
#8	13/32''	10.5±0.4	17.3±0.5	3.5	21
#10	1/2''	13±0.4	19.4±0.5	3.5	22
#12	5/8''	16±0.4	23.6±0.5	3.5	18
